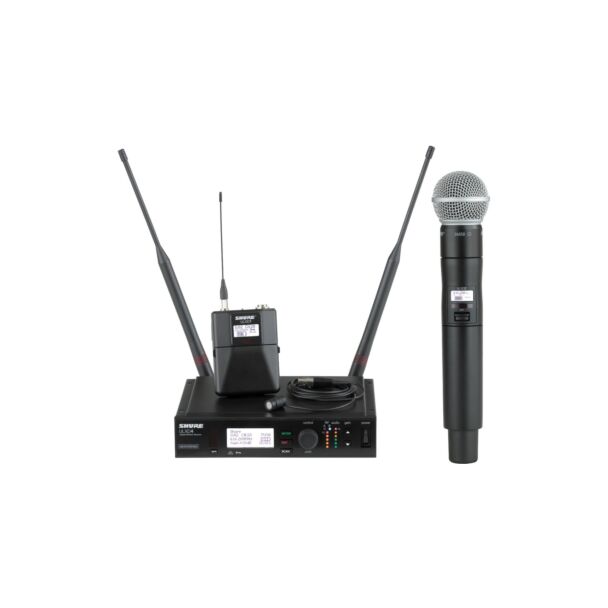

Shure ULXD124/85 ULX-D-Digital Combo Wireless System With SM58

ULXD4 Digital Wireless Receiver
Predictive switching diversity
Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
Interference detection and alerts provided on both the receiver and Wireless Workbench® 6 (coming soon)
Front panel gain adjustment buttons provide up to 60 dB additional gain
AES 256-bit encryption-enabled for applications where secure transmission is needed
Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration (coming soon), and AMX/Crestron control
Support for frequency coordination with the Axient™ Spectrum Manager (coming soon)
Rugged metal chassis
Intuitive front panel LCD menu and controls with lockout feature
Upgraded LCD with adjustable contrast and brightness
Audio and RF LED meters with peak indicator
Remoteable ½ wave antennas
Furnished rack hardware

ULXD24/SM58 Handheld
30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
Interchangeable Shure microphone cartridges, including the legendary SM58®
AES 256-bit encryption for applications for which secure transmission is needed
Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
Shure Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect
External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
Backlit LCD with easy to navigate menu and controls
Rugged metal construction
Frequency and power lockout

ULXD1 Wireless Bodypack Transmitter
AES 256-bit encryption for applications for which secure transmission is needed
Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5 segment battery fuel gauge, and zero memory effect
External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
Backlit LCD with easy to navigate menu and controls
Rugged metal construction
Detachable ¼ wave antenna
Frequency and power lockout

WL185 (Cardioid):
Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle: 130 degrees.

-ULXD4 Digital Wireless Receiver
RF INPUT
Spurious Rejection
>80 dB, typical

Connector Type
BNC

Impedance
50 Ohms

Bias Voltage
12–13 V DC, 170 mA maximum, per antenna

AUDIO OUTPUT
Gain Adjustment Range
-18 to +42 dB in 1 dB steps (plus Mute setting)

Configuration
1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)

Impedance
1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms

Full Scale Output
1/4" (6.35 mm): +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

Mic / Line Switch
30 dB pad

Phantom Power Protection
1/4" (6.35 mm): Yes
XLR: Yes

NETWORKING
Power Over Ethernet (PoE)
No, protected

Network Interface
Single Port Ethernet 10 / 100 Mbps

Network Addressing Capability
DHCP or Manual IP address

Maximum Cable Length
328 ft (100 m)

ADDITIONAL SPECS
Audio Frequency Response
20 Hz–20 kHz, flat

Dynamic Range
120 dB, extended

Tuning Range
Up to 64 MHz

Dimensions
7.75" x 6.75" x 1.65" (197 mm x 171 mm x 42 mm), H x W x D

Weight
2.0 lbs (913 g), without antennas

Housing
Galvanized steel

-ULXD24/SM58 Handheld
AUDIO INPUT
Configuration
Unbalanced

Maximum Input Level (1 kHz at 1% THD)
145 dB SPL (SM58), typical
Note: Dependent on microphone type

Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20
120 dBV, A-weighted, typical

RF OUTPUT
Antenna Type
Integrated Single Band Helical

Occupied Bandwidth
<200 kHz

Modulation Type
Shure Proprietary Digital

Power
1 mW, 10 mW, 20 mW

ADDITIONAL SPECS
Audio Frequency Response
30 Hz to 20 kHz (±1 dB), flat
Note: Dependent on microphone type

Dynamic Range
>120 dB

Operating Range
300 ft (100 m)

Gain Offset Range
0 to 21 dB (in 3 dB steps)

Battery Type
Shure SB900 Rechargeable Li-Ion or AA batteries

Battery Runtime @ 10 mW
Shure SB900: >12 hours
Alkaline: 11 hours

Dimensions
10.1" x 2.0" (256 mm x 51 mm), L x Dia.

Weight
12.0 oz (340 g), without batteries

Housing
Machined aluminum

-ULXD1 Wireless Bodypack Transmitter
AUDIO INPUT
Connector
4-Pin male mini connector (TA4M)

Configuration
Unbalanced

Impedance
1 Megaohm

Maximum Input Level, 1 kHz at 1% THD
Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)

Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20
120 dBV, A-weighted, typical

RF OUTPUT
Connector
SMA

Antenna Type
1/4 wave

Impedance
50 Ohms

Occupied Bandwidth
<200 kHz

Modulation Type
Shure Proprietary Digital

Power
1 mW, 10 mW, 20 mW

ADDITIONAL SPECS
Audio Frequency Response
20 Hz to 20 kHz (±1 dB), flat
Note: Dependent on microphone type

Operating Range
300 ft (100 m)

Connector
3-pin TQG

Gain Offset Range
0 to 21 dB (in 3 dB steps)

Battery Type
Shure SB900 Rechargeable Li-Ion or AA batteries

Battery Runtime @ 10 mW
Shure SB900: >12 hours
Alkaline: 11 hours

Dimensions
3.4" x 2.6" x 0.9" (86 mm x 66 mm x 23 mm), H x W x D

Weight
142 g (5.0 oz.), without batteries

Housing
Cast aluminum
