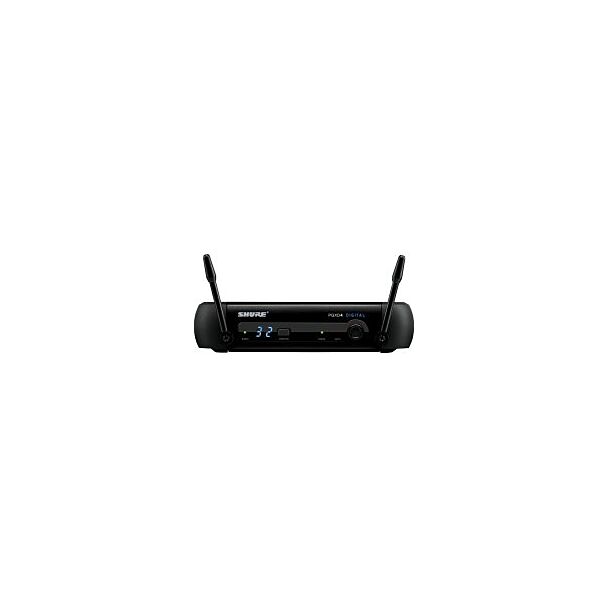

Shure PGXD4 Digital Single-Channel Diversity Receiver
The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.
The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity for rock-solid wireless signal reliability
Up to 5 compatible channels per frequency band
1/4" and XLR audio outputs
Included padded carrying case for portability and protection
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity for rock-solid wireless signal reliability
Up to 5 compatible channels per frequency band
1/4" and XLR audio outputs
Included padded carrying case for portability and protection
Dimensions
40 mm H X 181 mm W X 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight
289 g (10.2 oz.)
Housing
ABS
Audio Output Level
(ref. ± 38 kHz deviation, 1 kHz tone)
XLR connector (into 3000 Ω load): -2.5 dBV
1/4 inch connector (into 10000 Ω load): +10 dBV
Impedance
XLR: 50 Ω
1/4 inch: 50 Ω
Sensitivity
-102 dBm @ 10-5 BER
Image Rejection
> 70 dB, typical
XLR Output
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED
Red: 2 dB below clip, Amber: 12 dB below clip,
Green: 50 dB below clip
Power Requirements
12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments
XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
TRS: Tip=audio, Ring=no audio,Sleeve=ground
40 mm H X 181 mm W X 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight
289 g (10.2 oz.)
Housing
ABS
Audio Output Level
(ref. ± 38 kHz deviation, 1 kHz tone)
XLR connector (into 3000 Ω load): -2.5 dBV
1/4 inch connector (into 10000 Ω load): +10 dBV
Impedance
XLR: 50 Ω
1/4 inch: 50 Ω
Sensitivity
-102 dBm @ 10-5 BER
Image Rejection
> 70 dB, typical
XLR Output
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED
Red: 2 dB below clip, Amber: 12 dB below clip,
Green: 50 dB below clip
Power Requirements
12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments
XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
TRS: Tip=audio, Ring=no audio,Sleeve=ground
