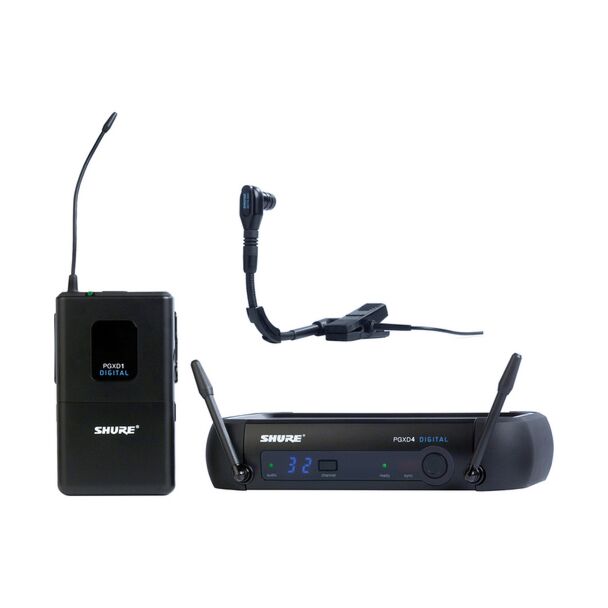

Shure PGXD14/BETA98H Digital Wireless System with Beta98H/C Instrument Mic
Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state-of-the-art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.
Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state-of-the-art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.
24-bit / 48kHz digital technology for incredibly accurate sound
Shure microphones trusted by musicians for over 80 years
Scan and sync instantly and automatically sets up the system
Up to 10 hours of continuous use from 2 AA batteries
Up to 200 ft (~60m) range for total wireless freedom
True digital diversity for a rock-solid wireless signal
900 MHz operation free from TV signal interference
Adjustable gain matches variable input levels
Up to 5 systems can be used at once
Rugged construction for reliable performance show after show
Durable hard shell padded case gets your gear from gig to gig
PGXD4
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity for rock-solid wireless signal reliability
Up to 5 compatible channels per frequency band
1/4" and XLR audio outputs
Included padded carrying case for portability and protection
PGXD1
Rugged, compact bodypack with belt clip
20 Hz – 20 kHz frequency range captures every nuance of tone
Power, mute, and battery status LED
200 ft (60 m) operating range
Up to 10 hours of continuous use from 2 AA batteries
Recessed dial on side provides 26 dB of continuously adjustable gain
Lockable interface prevents accidental setting change
Shure microphones trusted by musicians for over 80 years
Scan and sync instantly and automatically sets up the system
Up to 10 hours of continuous use from 2 AA batteries
Up to 200 ft (~60m) range for total wireless freedom
True digital diversity for a rock-solid wireless signal
900 MHz operation free from TV signal interference
Adjustable gain matches variable input levels
Up to 5 systems can be used at once
Rugged construction for reliable performance show after show
Durable hard shell padded case gets your gear from gig to gig
PGXD4
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity for rock-solid wireless signal reliability
Up to 5 compatible channels per frequency band
1/4" and XLR audio outputs
Included padded carrying case for portability and protection
PGXD1
Rugged, compact bodypack with belt clip
20 Hz – 20 kHz frequency range captures every nuance of tone
Power, mute, and battery status LED
200 ft (60 m) operating range
Up to 10 hours of continuous use from 2 AA batteries
Recessed dial on side provides 26 dB of continuously adjustable gain
Lockable interface prevents accidental setting change
PGXD4
Dimensions
40 mm H X 181 mm W X 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight
289 g (10.2 oz.)
Housing
ABS
Audio Output Level
(ref. ± 38 kHz deviation, 1 kHz tone)
XLR connector (into 3000 Ω load): -2.5 dBV
1/4 inch connector (into 10000 Ω load): +10 dBV
Impedance
XLR: 50 Ω
1/4 inch: 50 Ω
Sensitivity
-102 dBm @ 10-5 BER
Image Rejection
> 70 dB, typical
XLR Output
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED
Red: 2 dB below clip, Amber: 12 dB below clip,
Green: 50 dB below clip
Power Requirements
12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments
XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
TRS: Tip=audio, Ring=no audio,Sleeve=ground
PGXD1
Audio Input Level
+10 dBV maximum, at minimum gain setting
-16 dBV maximum, at maximum gain setting
Gain Adjustment Range
26 dB
Input Impedance
1 M ohms
RF Output Level
10 mW maximum (dependent on applicable country regulations)
Dimensions
108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)
Weight
128 grams (4.5 oz.) without batteries
Housing
Molded polycarbonate case
Power Requirements
2 AA batteries
Battery Life
Up to 10 hours
Dimensions
40 mm H X 181 mm W X 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight
289 g (10.2 oz.)
Housing
ABS
Audio Output Level
(ref. ± 38 kHz deviation, 1 kHz tone)
XLR connector (into 3000 Ω load): -2.5 dBV
1/4 inch connector (into 10000 Ω load): +10 dBV
Impedance
XLR: 50 Ω
1/4 inch: 50 Ω
Sensitivity
-102 dBm @ 10-5 BER
Image Rejection
> 70 dB, typical
XLR Output
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED
Red: 2 dB below clip, Amber: 12 dB below clip,
Green: 50 dB below clip
Power Requirements
12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments
XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
TRS: Tip=audio, Ring=no audio,Sleeve=ground
PGXD1
Audio Input Level
+10 dBV maximum, at minimum gain setting
-16 dBV maximum, at maximum gain setting
Gain Adjustment Range
26 dB
Input Impedance
1 M ohms
RF Output Level
10 mW maximum (dependent on applicable country regulations)
Dimensions
108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)
Weight
128 grams (4.5 oz.) without batteries
Housing
Molded polycarbonate case
Power Requirements
2 AA batteries
Battery Life
Up to 10 hours
| Brand | Shure |
|---|---|
| Discount | Additional 10% OFF |
| video | No |
| This Product Qualifies for Free Shipping | Yes |
| Freeshipping | Free Shipping |
| SKU | SHURE-PGXD14/BETA98H |
| MPN (manufacturer part number) | PGXD14BETA98H |
| Is Product Available for Purchase with Google Checkout | Yes |
