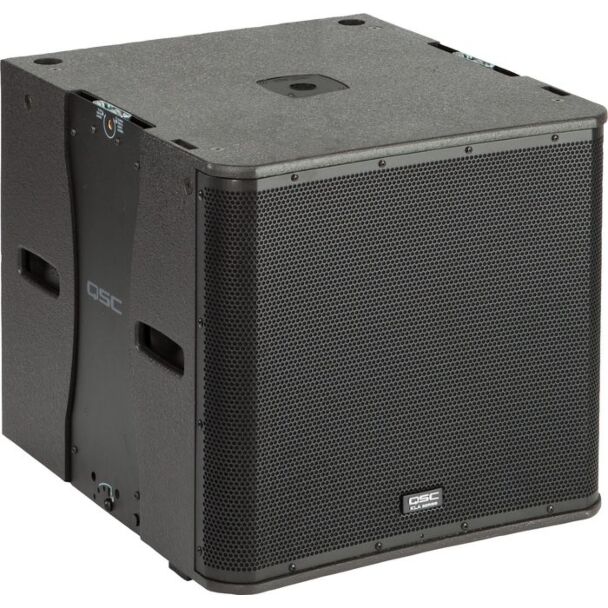

QSC KLA181 18" 1000W Powered Line Array Subwoofer
The KLA Series brings the power and sophistication of a line array system into an easy-to-use product significantly redefining the line array product category. With its simple Lift, Click and Play approach, KLA can be deployed in a fraction of the time required by comparable line array products.
This fixed arcuate, active line array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line array system is desired.
KLA Power Module
The KLA Series is comprised of two models, the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 watt by 500 watt power amp
KLA12 Power Module module and the KLA181 offers the same highly efficient power amp module in a 1,000 watt configuration. This efficient design enables up to five KLA models (any combination of KLA12 and KLA181) to be driven off of a single 15 amp, 120 volt electrical circuit.
KLA loudspeakers incorporate QSC's DEEP™ DSP algorithm - providing extended bass response by actively managing potentially damaging low-frequency transients - and GuardRail™ circuitry protection which prevents the amplifier module from unnatural and destructive clipping.
As an energy saving feature, the Auto Standby mode automatically engages after five minutes of inactivity but upon resumption of audio signal, the power module on the KLA will awaken instantly for immediate output.
In an installed application, multiple KLA Series loudspeakers can be "daisy-chained" for total gain control from a single remote pot wired to the on-board Phoenix-style connector. Additional power module characteristics on KLA include a balanced, line-level XLR input in parallel with an XLR "Thru" connector, PowerCon™ In and Thru connectors, Attenuation Control and LED indicators for Signal, Limit, Power and Standby status.
KLA181 Subwoofer In addition to DEEP™ DSP algorithm, GuardRail™, Auto Standby, balanced line-level XLR input with an XLR "Thru" connector, Attenuation Control and LED indicators, the KLA181 subwoofer also includes a polarity switch for low frequency directivity control.
The KLA Series brings the power and sophistication of a line array system into an easy-to-use product significantly redefining the line array product category. With its simple Lift, Click and Play approach, KLA can be deployed in a fraction of the time required by comparable line array products.
This fixed arcuate, active line array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line array system is desired.
KLA Power Module
The KLA Series is comprised of two models, the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 watt by 500 watt power amp
KLA12 Power Module module and the KLA181 offers the same highly efficient power amp module in a 1,000 watt configuration. This efficient design enables up to five KLA models (any combination of KLA12 and KLA181) to be driven off of a single 15 amp, 120 volt electrical circuit.
KLA loudspeakers incorporate QSC's DEEP™ DSP algorithm - providing extended bass response by actively managing potentially damaging low-frequency transients - and GuardRail™ circuitry protection which prevents the amplifier module from unnatural and destructive clipping.
As an energy saving feature, the Auto Standby mode automatically engages after five minutes of inactivity but upon resumption of audio signal, the power module on the KLA will awaken instantly for immediate output.
In an installed application, multiple KLA Series loudspeakers can be "daisy-chained" for total gain control from a single remote pot wired to the on-board Phoenix-style connector. Additional power module characteristics on KLA include a balanced, line-level XLR input in parallel with an XLR "Thru" connector, PowerCon™ In and Thru connectors, Attenuation Control and LED indicators for Signal, Limit, Power and Standby status.
KLA181 Subwoofer In addition to DEEP™ DSP algorithm, GuardRail™, Auto Standby, balanced line-level XLR input with an XLR "Thru" connector, Attenuation Control and LED indicators, the KLA181 subwoofer also includes a polarity switch for low frequency directivity control.
1,000 watt power module
18" vented subwoofer
High acoustic output (135 dB SPL peak)
Frequency range down to 33 Hz (-10 dB)
Extensive DSP further enhances and protects performance
PowerCon™ Input and Thru connections
Threaded pole-cup receptacle for free-standing applications
Suspension made possible via M10 fittings or KLA12AF Array Frame
Integrated threaded pole mount supports up to two KLA12 enclosures
18" vented subwoofer
High acoustic output (135 dB SPL peak)
Frequency range down to 33 Hz (-10 dB)
Extensive DSP further enhances and protects performance
PowerCon™ Input and Thru connections
Threaded pole-cup receptacle for free-standing applications
Suspension made possible via M10 fittings or KLA12AF Array Frame
Integrated threaded pole mount supports up to two KLA12 enclosures
Configuration 18" subwoofer
Transducers
High Frequency
Low Frequency 18" cone transducer
Frequency Response (-6 dB) 38 Hz
Frequency Range (-10 dB) 33 Hz
Nominal Coverage -
Maximum SPL (1 meter) 135 dB peak
Power Output 1000 W Class D continuous
Input Impedance (ohms) XLR: 40k balanced / 20k unbalanced
Indicators Power, Signal, Standby, Limit
Connectors Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON™ power connector AC Out
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption
(1/8 Power) 100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Dimensions (HWD) 21.6" x 23.1" x 25.7"
(547mm x 586mm x 633mm)
Weight (Net) 100 lb (45.3 kg)
Transducers
High Frequency
Low Frequency 18" cone transducer
Frequency Response (-6 dB) 38 Hz
Frequency Range (-10 dB) 33 Hz
Nominal Coverage -
Maximum SPL (1 meter) 135 dB peak
Power Output 1000 W Class D continuous
Input Impedance (ohms) XLR: 40k balanced / 20k unbalanced
Indicators Power, Signal, Standby, Limit
Connectors Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON™ power connector AC Out
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption
(1/8 Power) 100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Dimensions (HWD) 21.6" x 23.1" x 25.7"
(547mm x 586mm x 633mm)
Weight (Net) 100 lb (45.3 kg)
| Brand | QSC |
|---|---|
| Discount | Additional 10% OFF |
| video | |
| This Product Qualifies for Free Shipping | Yes |
| Freeshipping | Free Shipping |
| SKU | QSC-KLA181 |
| MPN (manufacturer part number) | KLA181 |
| Is Product Available for Purchase with Google Checkout | Yes |
